Fully Custom USB Connectivity for Medical Devices

Chimitech develops custom USB and USB-C cable assemblies to meet your medical device requirements, including signal integrity at the required cable length, tight dimensional constraints, and biocompatible materials. We provide design and engineering support to help reduce redesign risk and ensure the cable fits and performs as required before volume production.

One Cable Requirement Can Change the Entire Design

In a medical device, cable length, conductor size, shielding, OD, flexibility, materials, and connector geometry are connected.

For example, increasing cable length can require larger conductors to maintain signal performance. Larger conductors can increase cable OD, which may then affect flexibility, connector tooling, and enclosure fit.

Longer Length → More Signal Loss → Larger Conductors → Larger OD → Mechanical Changes → Revalidation

We evaluate these trade-offs before the design is released, so you can avoid solving one problem by creating another.

It All Starts with What Your Medical Device Needs

Whether you have a finished cable specification or only key requirements like speed, length, space, and flexibility, both are valid starting points. We don’t just build to drawings—we help identify the cable construction that will realistically work.

Make It Work at the Required Cable Length

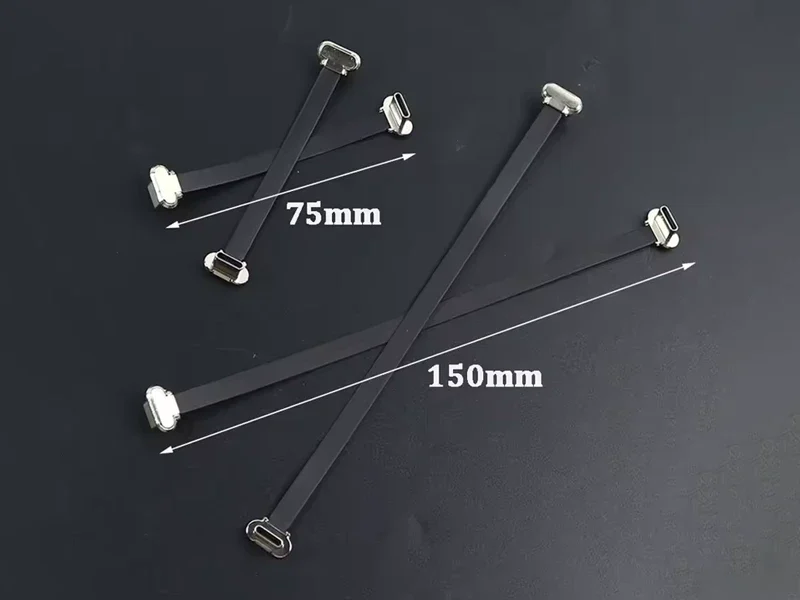

A medical usb cable that performs at 1 meter may not deliver the same result at 2.5 or 3 meters. We evaluate cable length together with conductor gauge, data rate, shielding, impedance and power requirements.

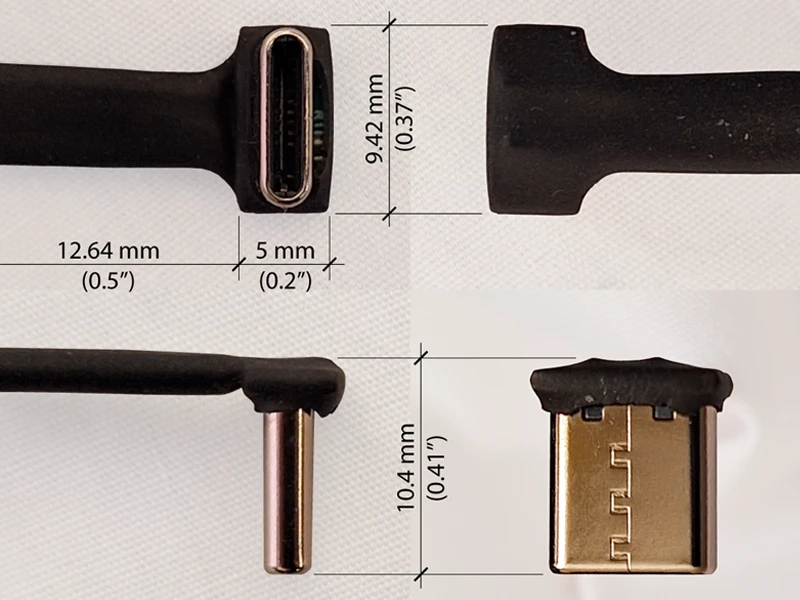

Fit the Custom Cable Into Your Medical Device

Electrical performance is only useful if the finished cable also fits your enclosure. We design the cable around your available space instead of changing your device around the cable.

Choose the Right Material for Your Application

Chimitech helps you select cable materials based on the real demands of your device, balancing durability, sterilization compatibility, chemical resistance and environmental exposure.

Transparent Pricing

We believe in full cost transparency so you know exactly where every dollar goes. Custom medical cable development may involve tooling, custom materials, cable extrusion, and engineering samples. Applicable NRE items are identified and confirmed before work begins — no hidden add-ons.

Design Services & Estimated Costs

Every project is different, but the following real project example shows how custom-development costs may be structured:

Inner mold tooling: USD 850
Outer mold tooling: USD 900
Medical-grade TPE MOQ charge for samples: USD 500
Cable extrusion setup, including 100m raw cable: USD 600

Final development cost depends on your cable construction, materials, tooling, sample quantity, and validation requirements.

Common Medical Device Applications

From compact surgical instruments to high-bandwidth imaging systems, medical devices can require very different combinations of data, power, shielding, flexibility and mechanical integration.

Surgical & Endoscopic Systems

Compact and flexible cable assemblies for equipment where connector geometry, cable routing and repeated handling are critical.

Medical Imaging Equipment

High-performance connectivity for imaging systems requiring stable signal transmission, controlled shielding and longer cable lengths.

Medical Diagnostic Devices

Custom USB-C configurations combining signal, power and application-specific conductor layouts.

Optical & Imaging Instruments

Hybrid assemblies integrating electrical conductors with customer-supplied optical components where required.

Laboratory & Analytical Equipment

Reliable cable solutions for instruments requiring customized interfaces, shielding, cable lengths or mechanical configurations.

Portable Medical Electronics

Compact connector and cable constructions optimized around space, flexibility and device enclosure constraints

Get Custom Samples & Quotes

Full Production Support Team

Engineering Documentation & Design Control

Think of all elements you’ll need to a unique solution: cable length & materials (braided, nylon…), transmission rate, plug-in connectors, and even more.

Extensive in-line & final testing

We ensure that every cable solution performs effectively and stably in real-world environments by applying 10+ different tests to every product before delivery.

Quality assurance

Full validation reports available to verify performance, reliability, and compliance. Supporting RoHS, FCC, REACH, USB-IF, and UL requirements.

Need help with a challenging cable project?

Our experts will provide custom cable design best practices and strategic recommendations to help your team move from concept to production faster.

Get your samples

Get your hands on the product and test your device first to save your time.

Get a custom quote

We provide support throughout the entire process to ensure the best possible end product.
