High Flex USB Cable Solutions for Robotics
Develop custom high flex USB and USB-C cables for robotic systems, machine vision, drag chains and automated equipment where repeated bending, movement and torsion make standard USB cables unreliable.
If you can share your equipment drawing, motion profile, USB specifications, and expected operating life, Chimitech can review the requirements with you and help determine a suitable cable construction and validation approach for your project.
High Flex USB Cable Testing & Validation

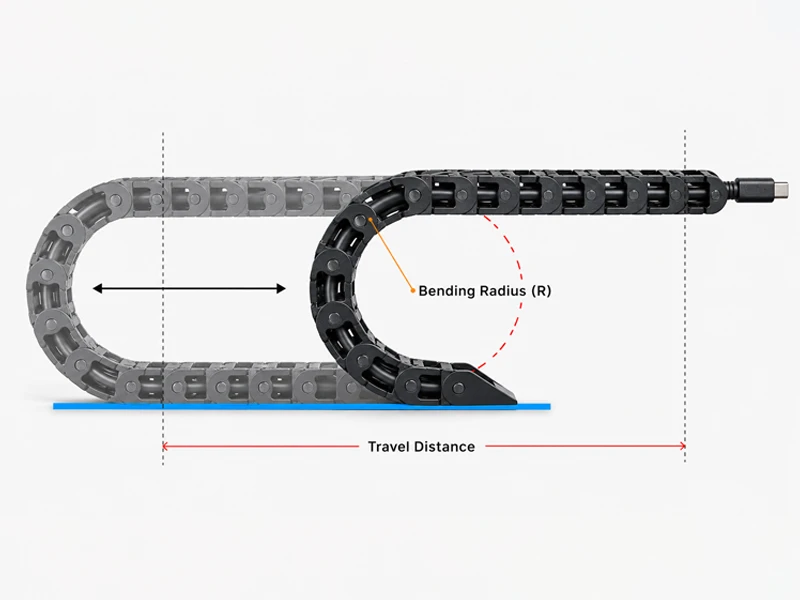

Drag Chain / Sliding Test
This test is used to evaluate cable performance in continuous linear motion, such as applications where the cable runs inside a drag chain or cable carrier. It helps verify whether the cable construction and bending radius are suitable for repeated travel over time.
- Simulates repeated cable movement in drag chain and cable carrier applications
- Helps evaluate cable suitability at a defined travel distance and bending radius (R)
- Useful for automation equipment, machine vision systems, and moving industrial devices
Typical Test Parameters
- Max. Moving Distance: 600 mm
- Cable Bending Radius: 50–1000 mm
- Max. Speed: 60 cycles/min

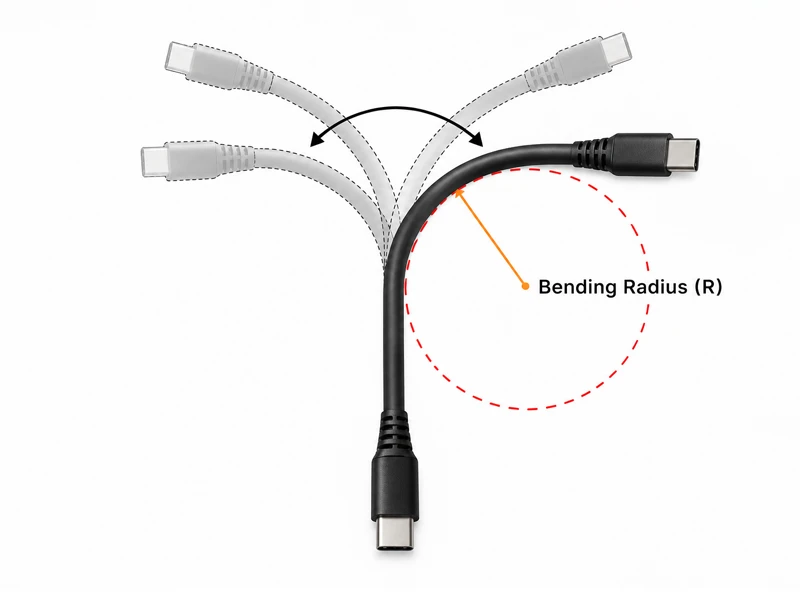

Repeated Bending Test
This test evaluates how a USB or USB-C cable assembly performs when repeatedly bent around a fixed point or joint. It is commonly used to simulate motion found in robotic arms, moving camera systems, and other applications where one section of cable bends back and forth during operation.
- Simulates repeated bending around a fixed motion point
- Helps assess cable durability under dynamic bend conditions
- Supports development of cable assemblies for robotic joints, hinged equipment, and moving modules
Typical Test Parameters
- Max. Angle: ±180°
- Max. Speed: 30 cycles/min
- Max. Loading: 1000g

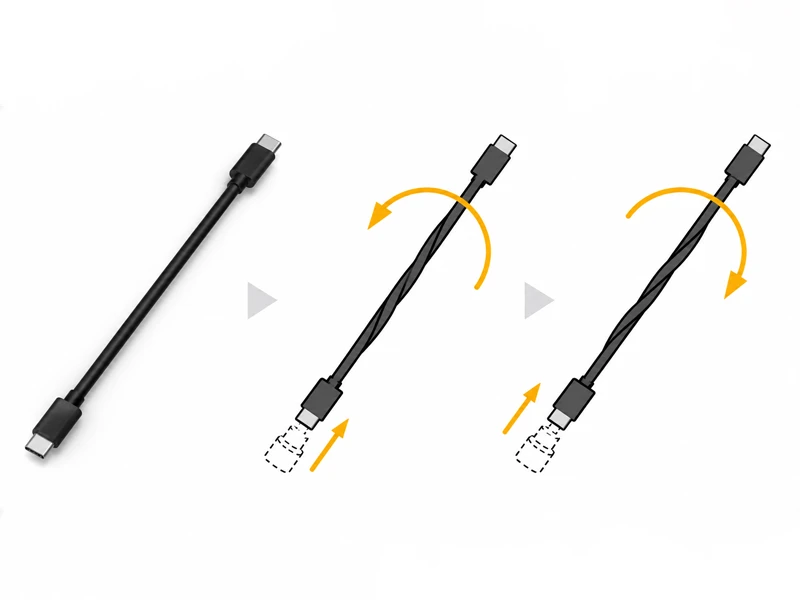

Torsion Test
This test is designed to evaluate cable behavior when the assembly is repeatedly twisted along its axis. It is especially relevant for robotic and motion-control applications where torsional movement may be present in addition to bending.
- Simulates repeated twisting motion for dynamic cable applications
- Helps evaluate cable construction for torsional movement in robotic systems
- Relevant for USB and USB-C cable assemblies used in moving automation equipment
Typical Test Parameters
- Max. Angle: ±180°
- Max. Speed: 15 cycles/min
- Max. Loading: 1000 g
Need help with a challenging cable project?
Need to evaluate a high flex USB or USB-C cable for your application? Share your motion profile, bend radius, connector configuration, and target cable length — Chimitech can help develop and validate a cable assembly around your real operating conditions.
